From React Health | Item #: LG3800
❮
❯

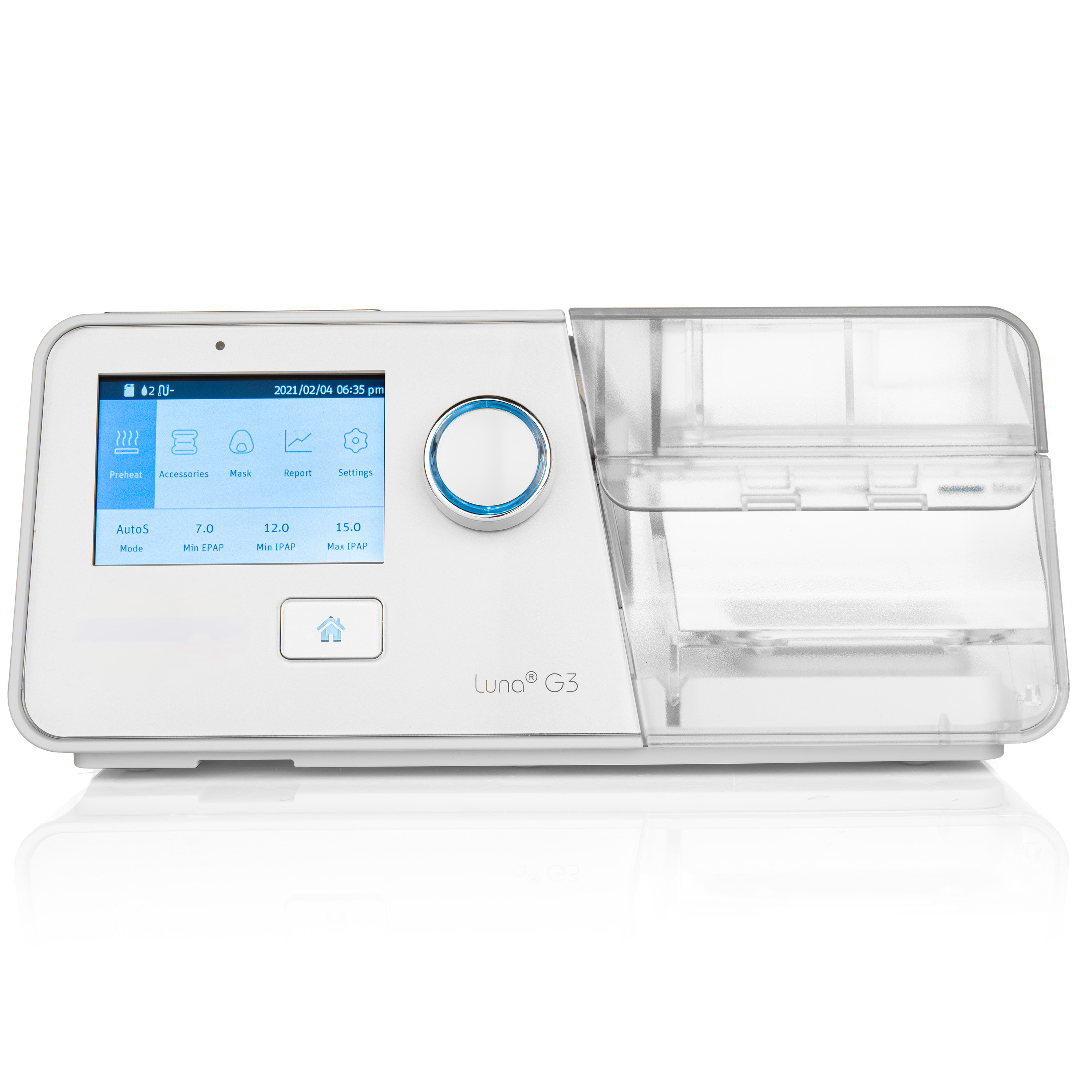

The Luna G3 BPAP 30VT S/T is a BiLevel PAP device intended to provide non-invasive ventilation for patients with obstructive sleep apnea (OSA) or respiratory insufficiency. View more
The Luna G3 BPAP 30VT S/T is a BiLevel PAP device intended to provide non-invasive ventilation for patients with obstructive sleep apnea (OSA) or respiratory insufficiency. It is intended for adult patients by prescription in the home or hospital/institutional environment. With its Target Tidal Volume function, excellent comfort features and effective performance, the Luna G3 BPAP 30VT offers each patient personalized ventilation support.
The device works in conjunction with patient’s breathing. If there is no inhalation for a certain period of time, the device will give a forced ventilation to ensure the minimum ventilation.
The device detects the leaks during treatment in real time and adjusts the baseline to ensure correct triggering and related functions.
The Luna G3 Bilevel ST 30Vt is 510k Approved.
The G3 series has a pre-heat feature to warm your humidifier water up for ultimate comfort.
Integrated heated tubing with intelligent Auto Humidity control allows G3 maximum moisture while ensuring rain out in the tubing is not an issue
Included in your package:
The Luna G3 Bilevel ST 30Vt Comes with the Following:
Device
AC/DC Power Cord
Standard Heated Tubing
SD Card
2 Reusable Filters
Carry Case
Device Specifications
| Prod Spec | Prod Spec Value |
|---|---|
| Device Dimensions (L x W x H) | 10.4" x 5.7" x 4.5" |
| Weight | 3.75 lbs |
| Humidification | Standard, Integrated |
| Heated Tubing | Standard |
| Connectivity | Integrated Cellular Modem QR Code, SD Card, WIFI |
| SD Data Capacity | Minimum 12 months |
| Filters | Reusable or Disposable Filter |
| Mode of Operation | CPAP, S, T, S/T |
| Breaths Per Minute | 3-40 in 1 bpm increments |
| Rise Time | 1 to 4 |
| Ramp Time | 0 to 60 min (increment is 5 min) |
| Inspiration Time | 0.1 to 3 seconds (increment is 0.1 second) |
| Ventilation Pressure | -1 |
| Pressure Range CPAP Work Mode | 4.0 ～ 20.0 cmH20 |
| Pressure Range Work Mode S, AutoS, T, S/T | IPAP: 4.0 ～ 30.0 cmH20; EPAP: 4.0 ～ 25.0 cmH20; |
| Sound pressure level dBA | < 26 dB, when the device is working at the pressur |
| Sound power level dBA | < 34 dB, when the device is working at the pressur |
- Efficiencies in Therapy with S/T Mode
- Inspiratory/ Expiratory Sensitivity
- Target Tidal Volume Function
- Leak Compensation
- Inspiratory Time Control
- Innovative PUSH Water Chamber for ease of use
- Pre-Heat Feature
- Integrated Heated Tubing with Intelligent Auto Humidity Control
